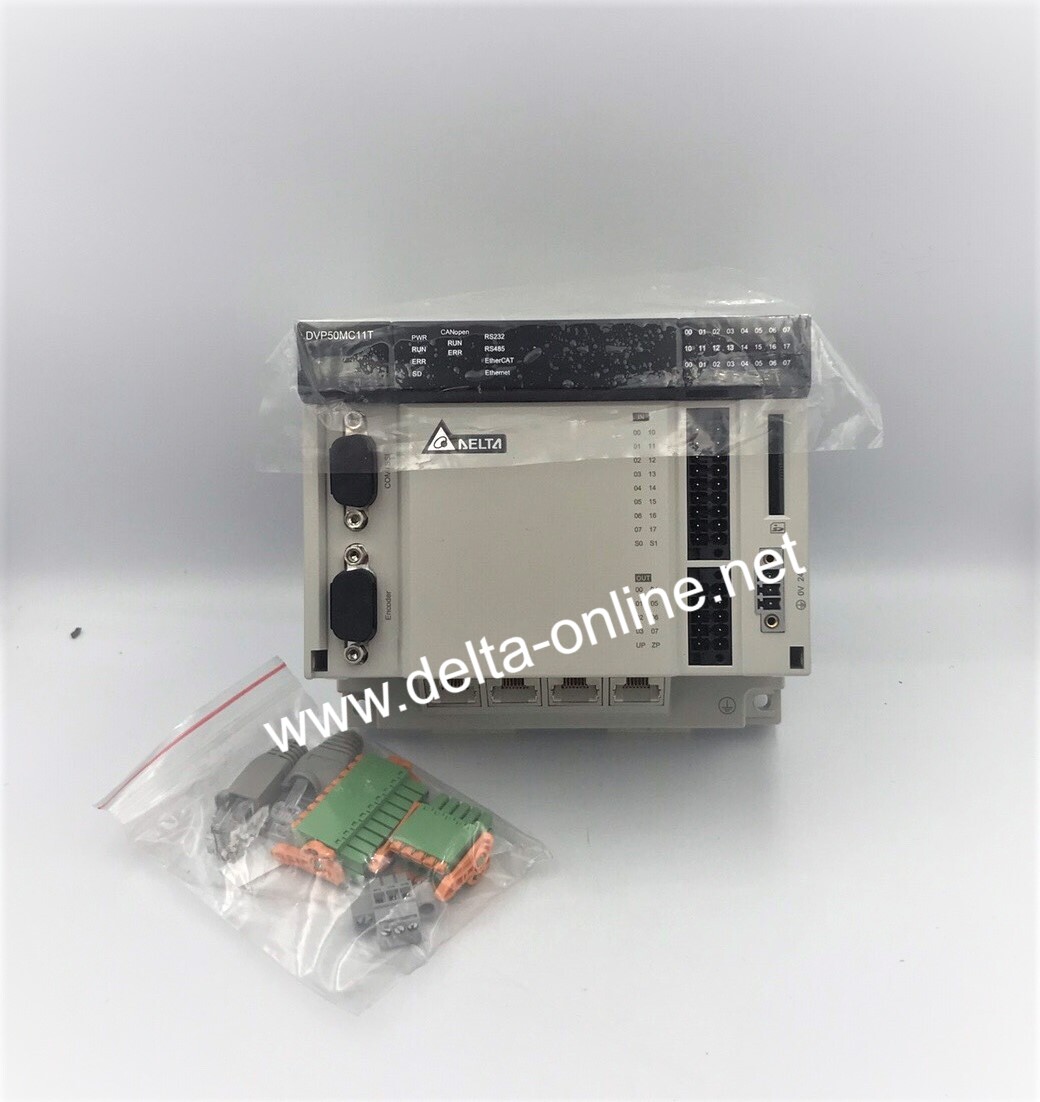

Delta PLC DVP50MC11T (EtherCAT) 24V (Transistor)

Features & Benefits

• Up to 24 real axes control (virtual axis no.: 1 ~ 32, can't be repetitive with real axis no.)

• Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use

• Supports encoder axis and virtual axis

• Single axis motion control instructions: speed, torque, homing, and position setup

• Application instructions: electronic gear, E-Cam, and rotary cut

• G-code/group axes: 8 axes linear / arc / helical interpolation

Applications

• High-speed Cutting Machine, Digital Board Cutting Machine, CNC Lathe

Specifications

1. 1 GHz high-speed floating point operation
2. High-precision computing: supports LREAL (Double-precision floating-point format )
3. Synchronization time: 24 axes in 1 ms
4. Program capacity: 20 MB
5. Data capacity: 20 MB
6. 1 CANopen port as host or slave station
7. 1 EtherCAT port for motion control
8. 16 high-speed inputs / 8 high-speed outputs
9. 2 incremental encoder interfaces
10. 1 SSI absolute encoder interface
11. 1 Ethernet port
12. 1 SD card slot
13. 1 RS-232 port and 1 RS-485 port
14. Extension:
    - Left-side: Supports up to 8 DVP-S Series modules (master/slave communication / analog / load cell modules)
    - Right-side: Compatible with DVP-S Series modules (240 inputs+240 outputs, 8 special modules)
