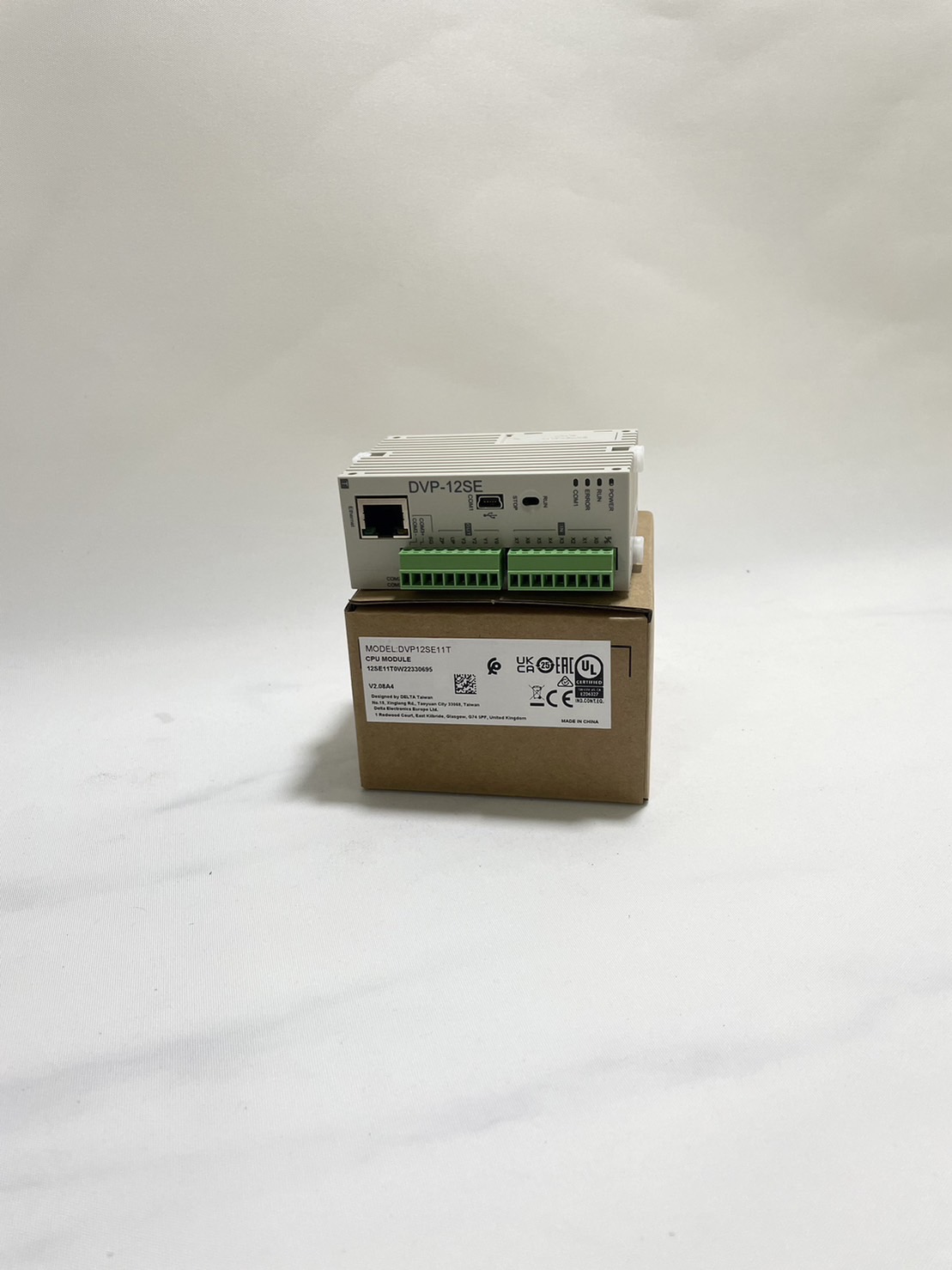

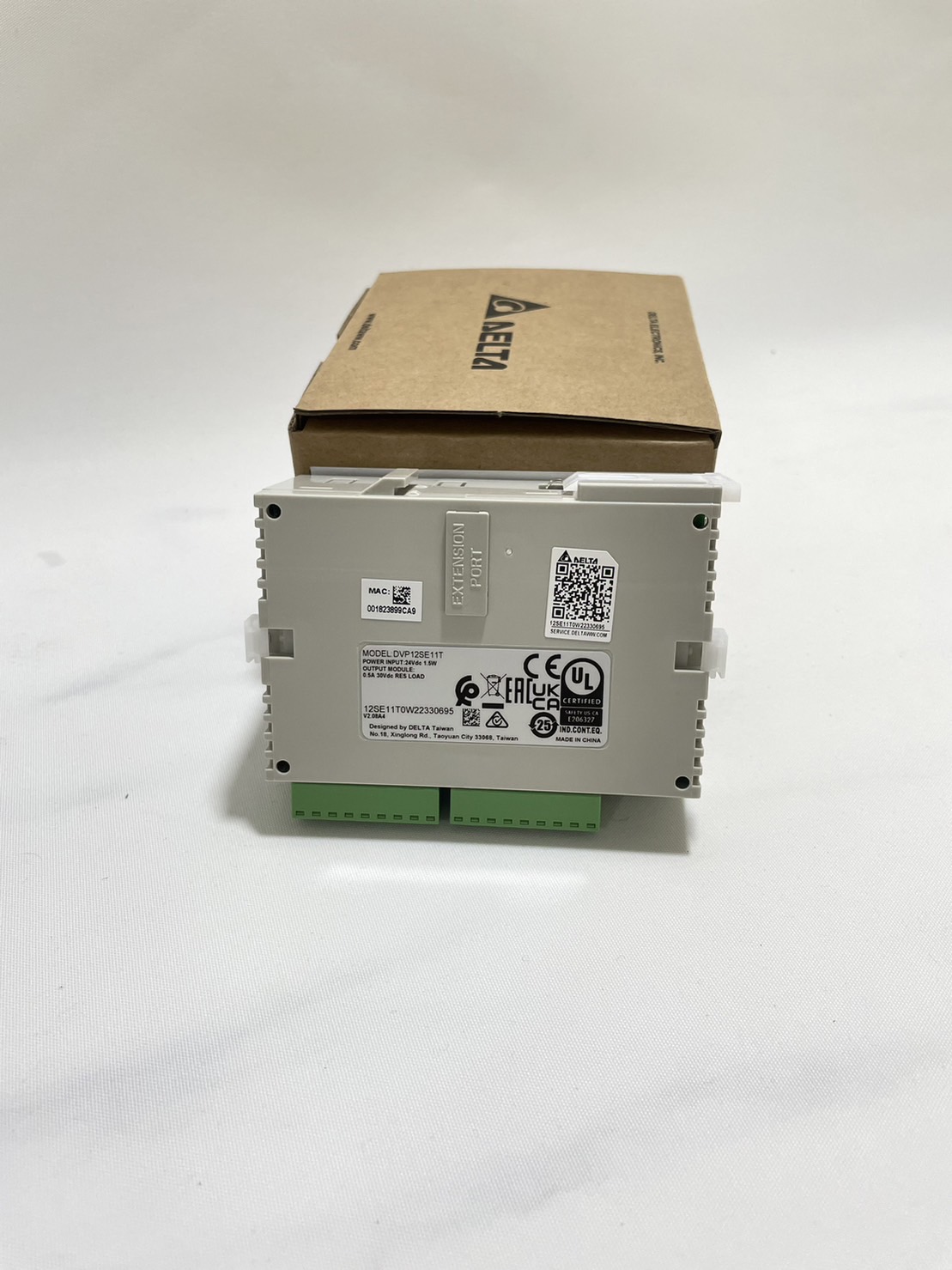

Delta PLC DVP12SE11T 8I/4O ,Ethernet 24V (Transistor)

Supports 2-axis linear and arc interpolation

High execution speed: LD: 0.64μs, MOV: 2μs

Built-in mini USB, Ethernet and 2x RS485 com ports

8 sets of high-speed counters (2 x 100kHz / 6 x 10kHz)

Program capacity: 16k steps / data register: 12k words

Built-in Ethernet supports MODBUS TCP and Ethernet/IP

4 sets of of high speed pulse output (2 x 100kHz / 2 x 10kHz)

MPU points: 12 points (8DI + 4DO) expandable to 480 points

IP filter function, firewall providing protection from malware and network threats

Supports DVP-S series left-side (high speed) and right side expansion modules
