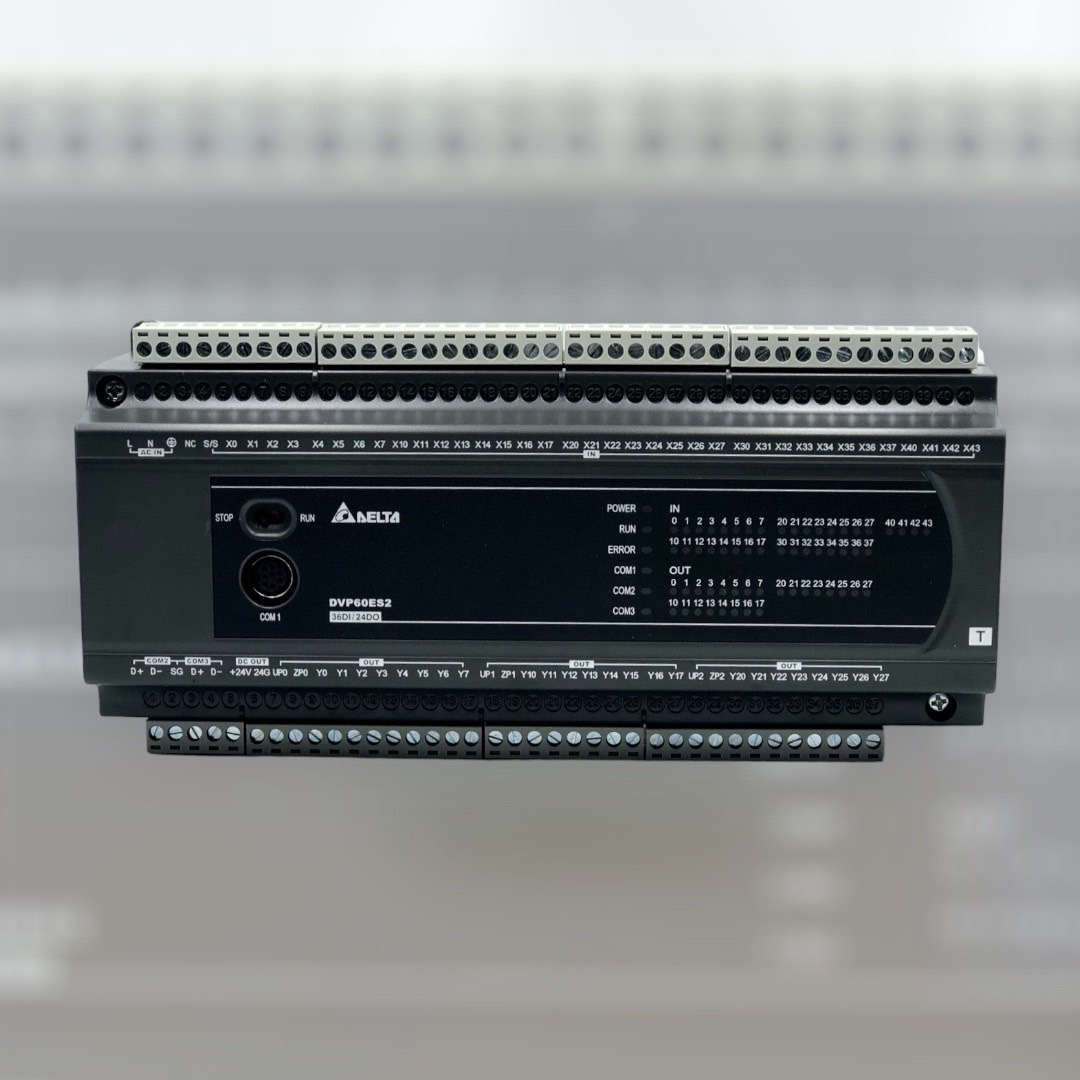

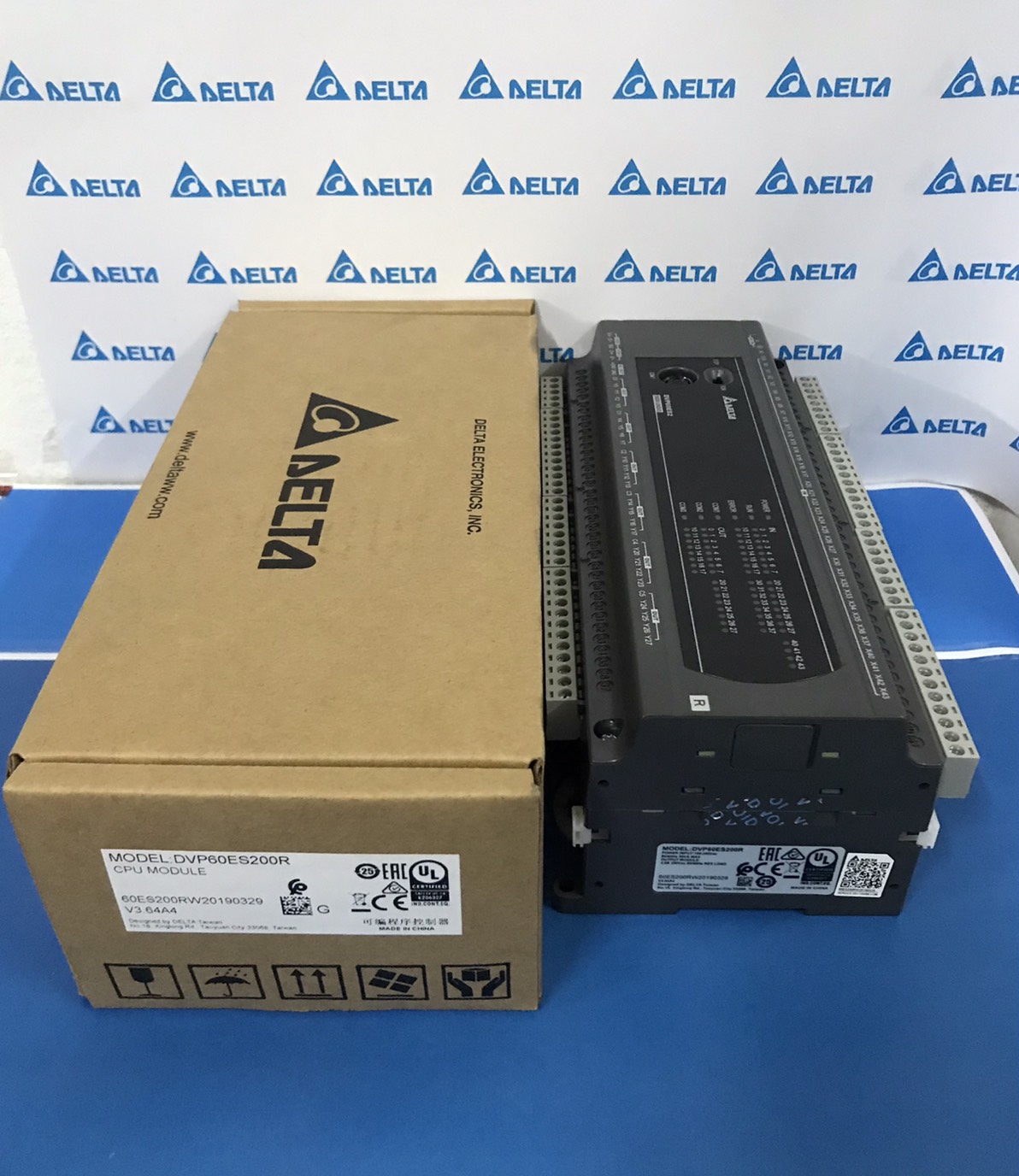

Delta PLC DVP60ES200R 36DI/24DO 220V (Relay)

apacity: 1-Program c6k steps

-Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)

-Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points

-DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.

-Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes

-New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration

-Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker

-Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta’s AC motor drives

-Password protection: Password for subroutine, user ID, restriction on trial times

-Highly efficient instruction efficient instruction execution

-Power supply voltage  : 100 ~ 240VAC (-15% ~ 10%), 50/60Hz + – 5%

-Power supply fuse : 2A/250VAC

-Power consumption : 30VA

-DC24V current output : 500mA
