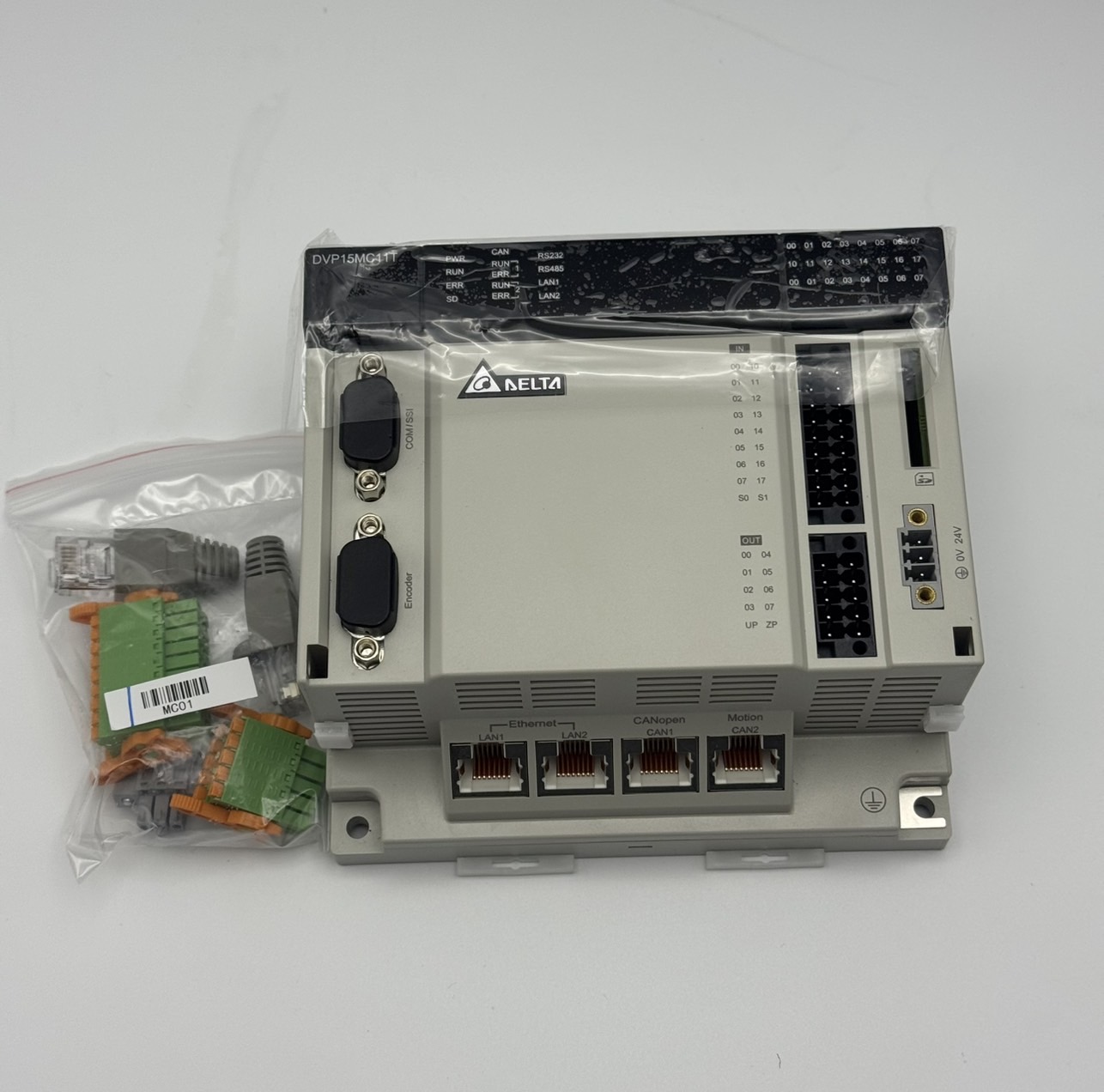

Delta PLC DVP15MC11T-06 6 axis Canopen Motion Controller

Features & Benefits

• Up to 24 real axes control (virtual axis no.: 1 ~ 32, can't be repetitive with real axis no.)

• Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use

• Supports encoder axis and virtual axis

• Single axis motion control instructions: speed, torque, homing, and position setup

• Application instructions: electronic gear, E-Cam, and rotary cut

• G-code: 8 axes linear / arc / helical interpolation

• Coordinates motion control instruction

Applications

High-speed Cutting Machine, Digital Board Cutting Machine, CNC Lathe

Specifications

1. 1 GHZ high-speed floating point operation
2. High-precision computing: supports LREAL (Double-precision floating -point format )
3. Synchronization time: 4 axes in 2 ms / 8 axes in 4 ms
4. Program capacity: 20 MB
5. Data capacity: 20 MB
6. 1 CANopen port as host or slave station
7. 1 CANopen (Motion) communication port for motion control
8. 16 high-speed inputs / 8 high-speed outputs
9. 2 incremental encoder interfaces
10. 1 SSI absolute encoder interface
11. 2 Ethernet ports
12. 1 SD card slot
13. 1 RS-232 port and 1 RS-485 port
14. Extension:
15.      - Left-side: Supports up to 8 DVP-S Series modules (master / slave / load cell modules)
16.      - Right-side: Compatible with DVP-S Series modules (240 I/O, 8 special modules)
